Description

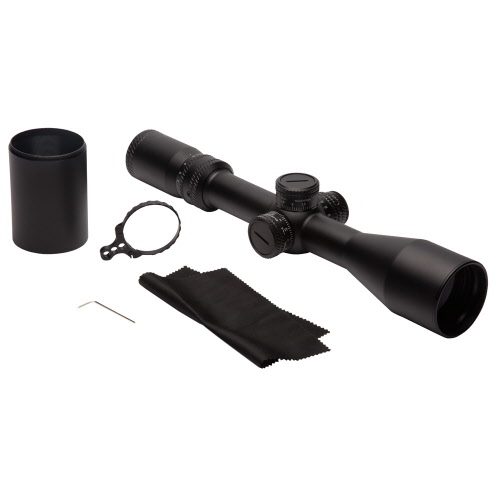

Included in Package
- Flip up Lens Covers
- Sunshade
- CR2032 Battery

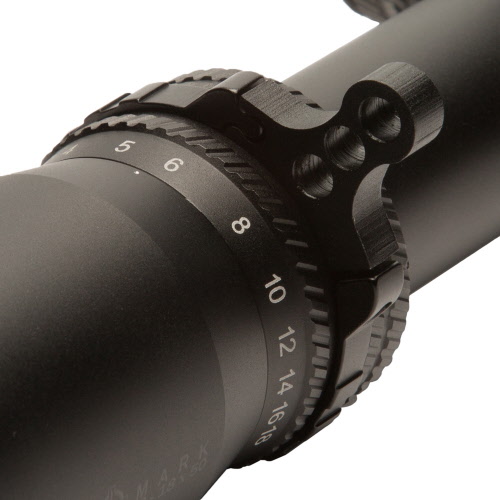

- Throw Lever Attachment
Batteries Used
- Type: CR2032
- Quantity: 1
Product Downloads
Features
- First focal plane reticle
- Red illuminated retiicle

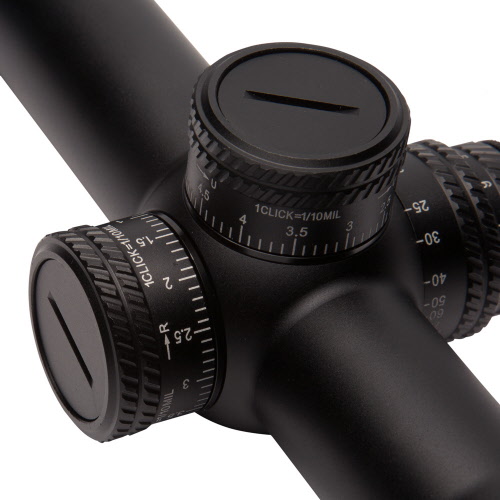

- Exposed, low-profile turrets
- Single-piece 30mm tube
- Fully multi-coated optics
- 6:1 zoom ratio
| Reticle | Etched glass |
| Reticle, Color | Red |
| Illuminated (yes/no) | Yes |
| Reticle Brightness Setting | 0-11 |
| Finish/Color | Matte black |
| Magnification | 3-18 x |
| Diameter, Objective Lens | 50 mm |
| Diameter, Eyepiece | 1.6 / 40 in / mm |
| Diameter, Exit Pupil | 7.4 – 2.7 mm |
| Eye Relief | 4.6 – 3.7 / 116.8 – 94 in / mm |
| Field of view, m@100m | 11 – 1.9 |
| Field of view, ft@100yd | 33 – 5.8 |
| Diopter Adjustment | +2 to -2 |
| Diameter, Tube | 30 / 1.18 mm / in |
| Parallax Setting | 15 – ∞ yds |
| Mil adjustment (one click =) | .1 MIL |
| Windage Range of Adjustment | 17 MIL |
| Elevation Range of Adjustment | 17 MIL |
| Windage & Elevation, Lock | Yes |
| Maximum Recoil | .338 Win |
| Battery Type | CR2032 |
| Battery life, hours | 100 – 70 |
| Battery Voltage, V | 3 |
| Sunshade | Yes |
| Nitrogen Filled | Yes |
| Shockproof | Yes |
| Fog Proof | Yes |
| Focal Plane | 1st |
| IP Rating (waterproof) | IP 67 – waterproof and dustproof |
| Body Material | Aluminum |
| Lens Coating | Fully multi-coated |
| Operating Temperature | 0 to 120 / -17 to 49 F / C |
| Length | 13 / 330 in / mm |
| Width | 3.1 / 79 in / mm |
| Height | 2.2 / 56 in / mm |
| Weight, oz | 26.1 oz |
