Description
WINDAGE AND ELEVATION ADJUSTMENT KNOBS
Tactical elevation and windage turrets with capped precise, repeatable and audible ¼ MOA clicks. Easy to reset to zero with the use of a coin, making zeroing or field adjustments quick and eas
ZEROTECH LIFETIME WARRANTY
This is our promise to ZeroTech customers, no matter what the problem is we will cover your riflescope for a lifetime.
FULLY MULTI-COATED TECHNOLOGY
ZEROTECH’S Fully Multi-Coated (FMC) optical system applies multiple layers of anti-reflective compounds to every air to glass surface to provide extremely high light transmission with bright, clear images even in low light.
MAIN BODY TUBE
The 30mm, one-piece tube is O-ring sealed and purged with Argon gas, making it completely waterproof and fogproof.
MAGNIFICATION RING
Large, easy-to-read numbers for quick identification of magnification setting.
RETICLES
Available in:
Duplex – Classic reticle
Mildot – A traditional reticle, calibrated in mils, giving shooters the added ability to take long range shots with a high degree of precision. – Click here for info
PHR II – The PHR II shares all the features of the PHR reticle with the addition of a floating centre dot for an ultra-refined point of aim as well as a finer 6 o’clock post, enabling even more precise elevation ‘hold overs’.
PHR II IR – The PHR II Illuminated Reticle shares all the features of the PHR reticle with the addition of a floating centre dot for an ultra-refined point of aim as well as a finer 6 o’clock post, enabling even more precise elevation ‘hold overs’.
Unobtrusive elevation holds are available at 1.1, 2.5, 5, 10, 15, 20 and 25 MOA, allowing the shooter to maximise the potential of their rifle and ammunition combination.

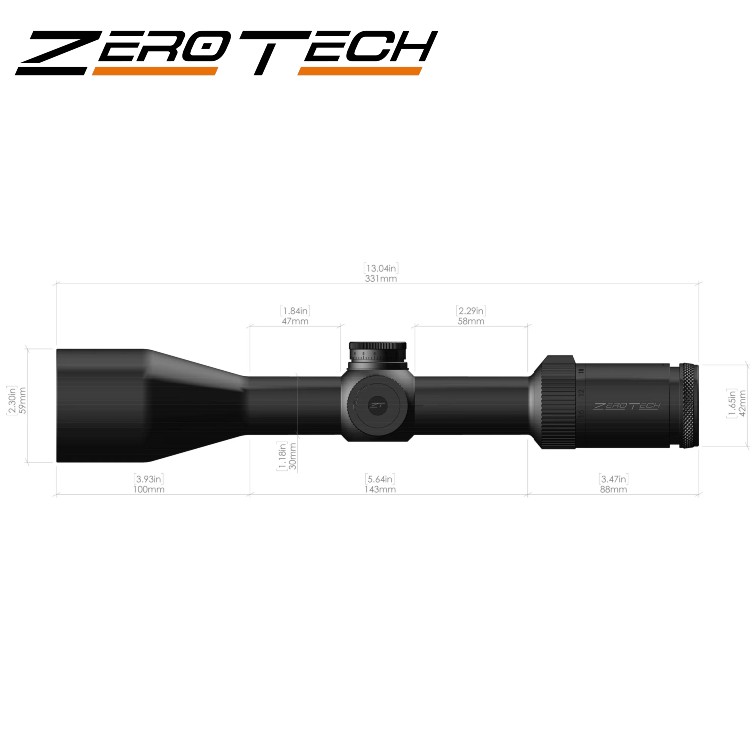

4-16×50 SPECIFICATIONS
Focal Plane | Second (SFP) |
Magnification Range | 4-16x |
Objective Lens Diameter | 50mm |
Maintube Diameter | 30mm |
Zero Stop | No |
Turret Index Value | 0.25MOA |
Internal Elevation Adjustment | 60MOA |
Internal Windage Adjustment | 60MOA |
Parallax Adjustment Range | 10 Meters – Infinity |
Exit Pupil Diameter | Low: 12.5mm; High: 3.0mm |
Eye Relief | 86-91mm |
Field of View @100 Metres | Low: 9.8m; High: 2.4m |
Objective Outer Diameter | 58.5mm |
Ocular Outer Diameter | 43.5mm |
Weight | 670g |
Available Reticles | PHR II / Duplex / Mildot |
Illumination | No |
