Description
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Frame Rate50Hz
- Pixel Pitch12μm
- Response Waveband8μm to 14μm
- NETD Less than 18mK @ 25°C, F# = 1.0
- Lens35mm, F1.0
- Focus Mode Focus Ring
- Detection Range1800m
- Minimum Focusing Distance3m
- Magnification3.2x to 25.6x
- Field of View7.6° × 5.7° / 13.1m × 10.0m at 100m
- Display0.49-inch AMOLED
- Colour Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil8mm
- Eye Relief55mm
- Diopter Adjustment-4D to +4D
- Brightness Adjustment Yes
- Tone Adjustment Cold / Warm
- Contrast Adjustment Yes
- Zoom Pro Yes
- HIKMICRO Shutterless Image System Yes
- Image Pro 3.0 Yes
- Sync Pro Yes
- Video Recording On-board video recording
- Snapshot Capture Yes
- Hotspot Yes
- Standby Mode Yes
- Storage Built-in 64GB EMMC
- Picture-in-Picture Yes
- Local Album Yes
- Audio Recording Yes
- Recoil-Activated Recording Yes
- Freeze Zeroing Yes
- Maximum Recoil1000g / 0.4ms
- Zeroing Profiles5
- Ballistic Calculation Yes
- Click Value1 click = 1cm at 100m
- Distance Measurement Yes
- Battery Type One internal rechargeable lithium battery and one replaceable rechargeable 18650 battery
- Battery Operating Time Up to 8 hours continuous running at 25°C with Zoom Pro and LRF on
- Power Supply5V DC / 2A via USB Type-C
- Fast Charging SupportQC3.0
- Charging Note Only the built-in battery charges via USB-C; the external battery should be charged using the battery charger
- Protection LevelIP67
- Mounting Standard30mm

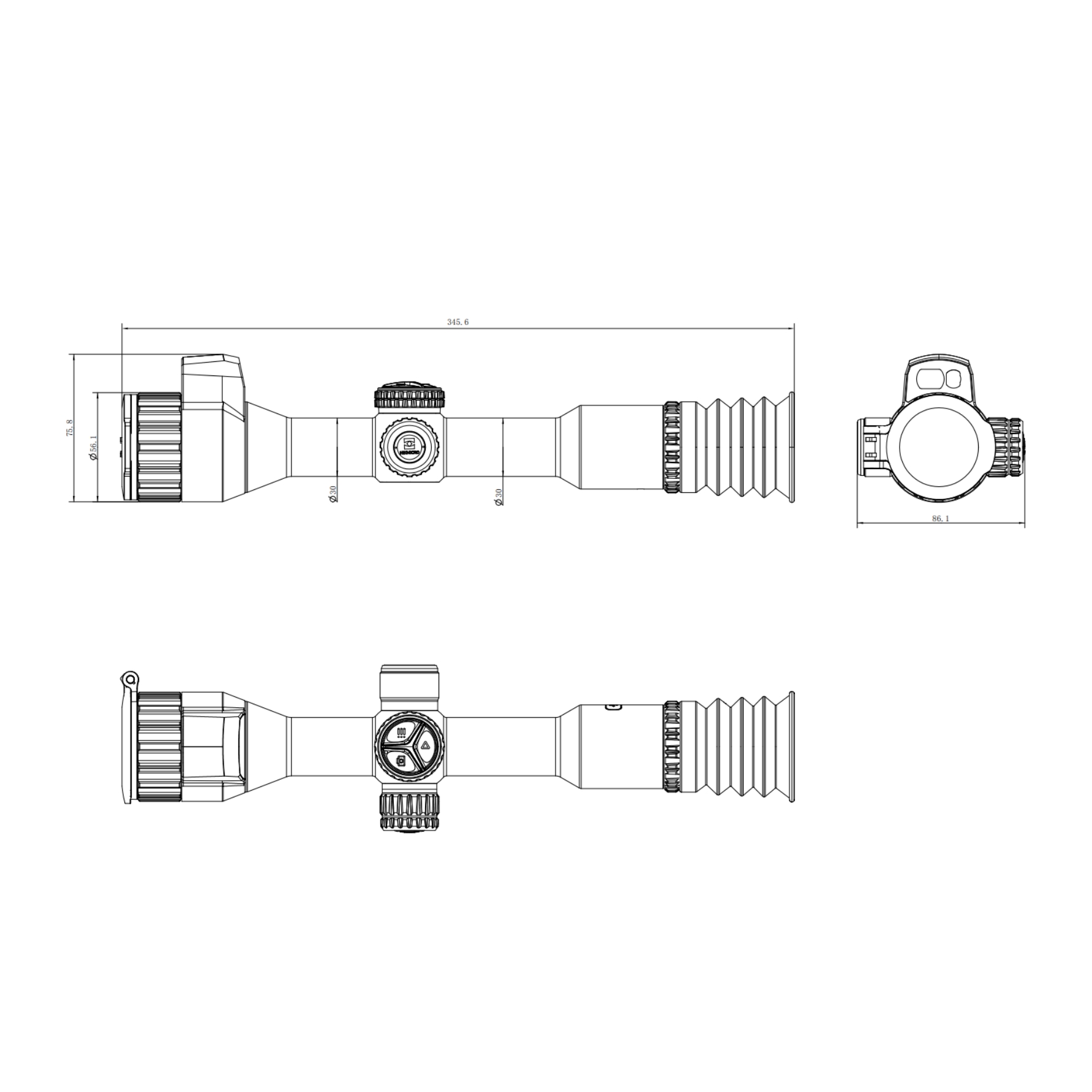

- Dimensions345.6mm × 86.1mm × 75.8mm
- Working Temperature-30°C to 55°C
- Weight570g
- Centre Height32mm
- Laser Safety Class Class 1
- Laser Wavelength905nm
- Maximum Measuring Range1000m
- Measurement Accuracy±1m
- Minimum Measuring Range10m
