The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range.
The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever
with precision engineering to bring you the ultimate 30mm riflescope. A variety of different reticle designs in
both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs
allow experienced shooters to hold off with precision.
For long range performance the Nexus has a built in 80 MOA (23.2 MRAD) of Elevation along with 50 MOA
(14.5 MRAD) of Windage – when combined accurately the Nexus will ensure you are always on target. For ease
of use the Nexus has 20 MOA per Turn on the Elevation Turret and 10 MOA Per Turn on the Windage Turret.
The Element Optics design team of global competition winners & hunters understands optics, and have
introduced strict quality control measures to ensure perfect operation under testing conditions. There’s a
reason for the price tag: Elemnent Optics have held nothing back, selecting only the very best materials,
engineering teams, assembly procedures and technical inspections – and you’ll realize that the moment
you pick it up.
Need something that ticks all the boxes? Look no further than our flagship, the NEXUS.

• Magnification 5-20x
• Focal Plane First Focal Plane
• Objective Lens 50mm
• Eye Relief 77-93mm
• Exit Pupil 2.5-8mm
• FOV @ 100 Meters 7.8m at 5x / 1.9m at 20x
• Total Windage Adj 14.5 Mil / 50 MOA
• Total Elevation Adj 23.2 Mil / 80 MOA
• Parallax Adjustment Side Focus (10m – Inf)
• Click Value 0.1 Mil / 0.250 MOA

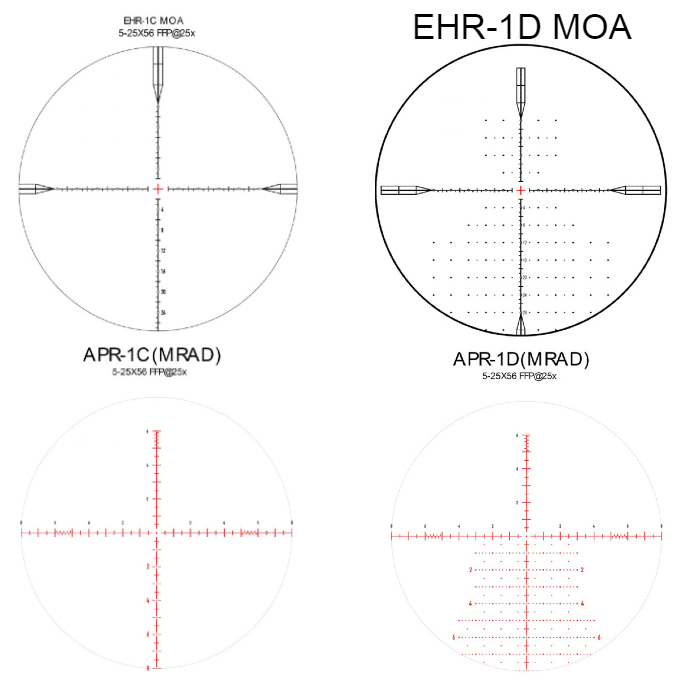

• Reticles – APR-1C MRAD / APR-1D MRAD / EHR-1C MOA / EHR-1D MOA
• Tube Diameter 30 mm
• Illuminated Reticle Yes
• Length 350mm
• Weight 794g
• Water Resistant Yes
• Hard Mechanical Zero-Stop Mechanism
• Platinum Lifetime Warranty
